Tips on Working with Dynamics CRM 2015 Calculated and Rollup Fields

Andre MargonoMicrosoft CRM, New Features,

Dynamics CRM 2015 release brings a rich tool for system customizers to be able to do their work with less dependency with code. The most useful features in Dynamics CRM 2015 is the Calculated and Rollup Fields.

First of all there are some good post from fellow MVPs regarding these new features:

Calculated Fields (by Leon Tribe): http://blogs.msdn.com/b/mvpawardprogram/archive/2014/12/15/dynamics-crm-2015-calculated-fields.aspx

Rollup Fields (by Jukka Niiranen): http://niiranen.eu/crm/2014/12/analyzing-customer-behavior-data-crm-2015-rollup-fields/

So, I did my hands on with these new features to test and found out that some limitations in regards these new features:

  1. Currently there is no way to upgrade/update existing fields (Simple) to calculated or rollup fields. This situation could be common when there are some fields that calculated through other methods before (plugin/WF/js) that would like to be updated with the new functionality.
  2. The calculated or rollup fields need to be created first in metadata before it could be configured. Therefore if the configuration process was not completed during the creation of the fields there is potential “orphan” calculated/rollup fields that do nothing.
  3. The rollup fields are calculated asynchronously through the system job, therefore there will be some delay to get these fields to be calculated.

I hope this helps!

Dynamics CRM 2013 SP1 – UX Update – Mostly Unnoticed

Andre MargonoCRM 2013, Dynamics CRM 2013, Microsoft CRM, Microsoft Dynamics, New Features, UX,

Dynamics CRM 2013 SP1 comes with lots of new good stuffs, such as the new Service Management, SLA, Timer on Case, Queue Routing, Social Listening and many more. However, for me as CRM user that always use PC and web browser to work with Dynamics CRM, the user experience for PC client quite cumbersome, especially the navigation bar that collapses immediately when my mouse pointer is navigated away from the bar. I love to have responsive mouse pointer and most of the time my mouse pointer goes out the navigation bar and closes the navigation bar, resulting multiple click to main navigation menu.

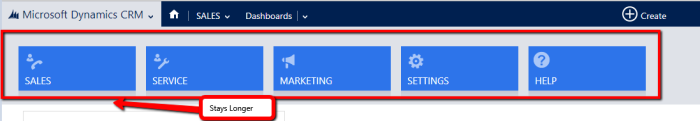

As my online instance being updated with Spring 14 release, I noticed an improvement in their UX. The navigation bar does not collapse immediately when my mouse pointer goes out of the bar.

This UX definitely gives a massive impact to my productivity. Big thanks to Dynamics CRM product team to listen to the feedback and delivered this feature!



Important information about supported configurations in the next release for CRM

Andre MargonoUncategorized, ,

The CRM Product team recently released the latest updates on supported configurations in the next release for Microsoft Dynamics CRM.

It includes removal of their supports for the popular Windows and SQL Server 2008 (time to upgrade!)

And also completely removes some of the deprecated javascript functions:

  • GetServerUrl()
  • IsOutLookClient()
  • IsOutlookOnline()

Full post: http://blogs.msdn.com/b/crm/archive/2014/05/14/important-information-about-supported-configurations-in-the-next-major-release-for-crm.aspx

Data Migration/System Integration using SSIS (Salesforce to Dynamics CRM Example)

Andre MargonoCRM 2013, Dynamics CRM 2013, Microsoft CRM, Microsoft Dynamics, , , , ,

Recently I had a chance to do a couple of data migration & integration projects for Dynamics CRM. On these projects, the ISV product that we chose is Dynamics CRM SSIS Connector by KingswaySoft. I got a great support from my MVP role model, Daniel Cai, during the project.

In this post, I would like to explain some basic setup, features and benefits of using the SSIS connector for Dynamics CRM. SSIS is really useful in system integration and migrating the data from legacy system to a newer one. In my sample scenario I’ll be using Salesforce.com as the data source and Dynamics CRM as target source. (This sample scenario is considering the of the situation of migrating data from Salesforce to Dynamics CRM. So, I hope this post will be beneficial for anyone that migrating data or considering to move from Salesforce to Dynamics CRM).

Note: KingswaySoft provides free SSIS connector to run under BIDS/Visual Studio, therefore it is a great tools for once-off data migration projects. For continuous processes (set the SSIS package schedule for instance), we need to buy the paid license (really reasonable price for this quality of tool + support). For pricing & purchasing info: https://www.kingswaysoft.com/purchase

Part 1: Environment Setup

1 . Visual Studio 2012 with SSDT Installed / BIDS 2008

(Note: Depends on the Production environment; AFAIK, the manifest file generated for deployment will be based on the IDE that generate the SSIS package; e.g. BIDS 2008 is for SQL Server 2008, and SSDT 2012 is for SQL Server 2012)

In this example I’m going to use Visual Studio 2012 with SSDT installed. (Download: http://www.microsoft.com/en-au/download/details.aspx?id=36843)

2. Install SSIS Connector for Dynamics CRM.

Download: http://www.kingswaysoft.com/products/ssis-integration-toolkit-for-microsoft-dynamics-crm/download

Dynamics CRM Connector help Manual:

http://www.kingswaysoft.com/products/ssis-integration-toolkit-for-microsoft-dynamics-crm/help-manual

3. Intall SSIS Connector for Salesforce.

Download: https://www.kingswaysoft.com/products/ssis-integration-toolkit-for-salesforce/download

Salesforce Connector help Manual:

https://www.kingswaysoft.com/products/ssis-integration-toolkit-for-salesforce/help-manual

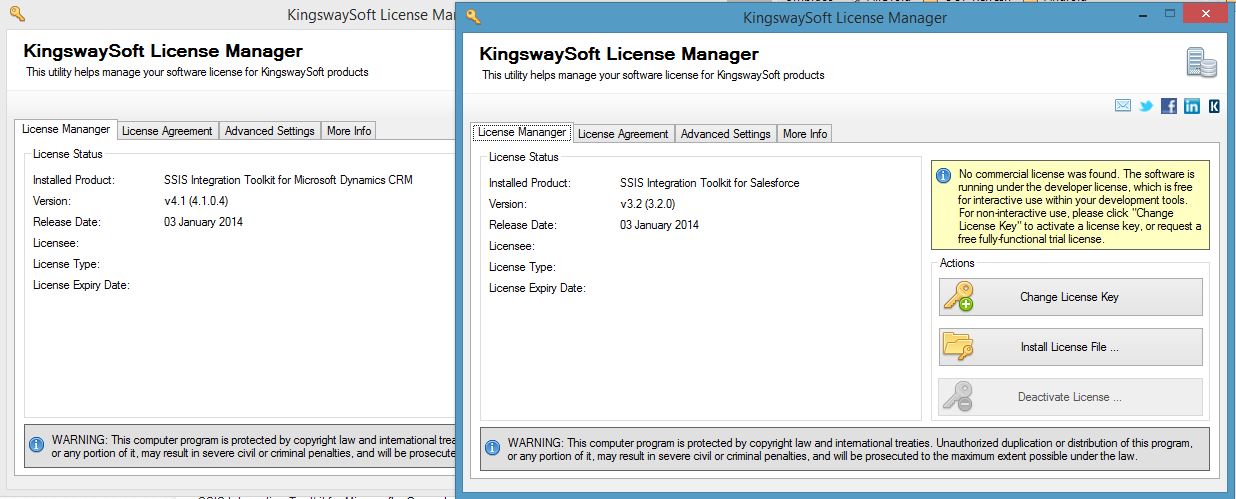

The installers from KingswaySoft will then install the License Managers for both products (Dynamics CRM and Salesforce)

Part 2: Getting Started With “CRM” SSIS Project

For this sample, I’m using Salesforce.com developer edition. To get a free developer license: https://developer.salesforce.com/ then click on Sign-Up.

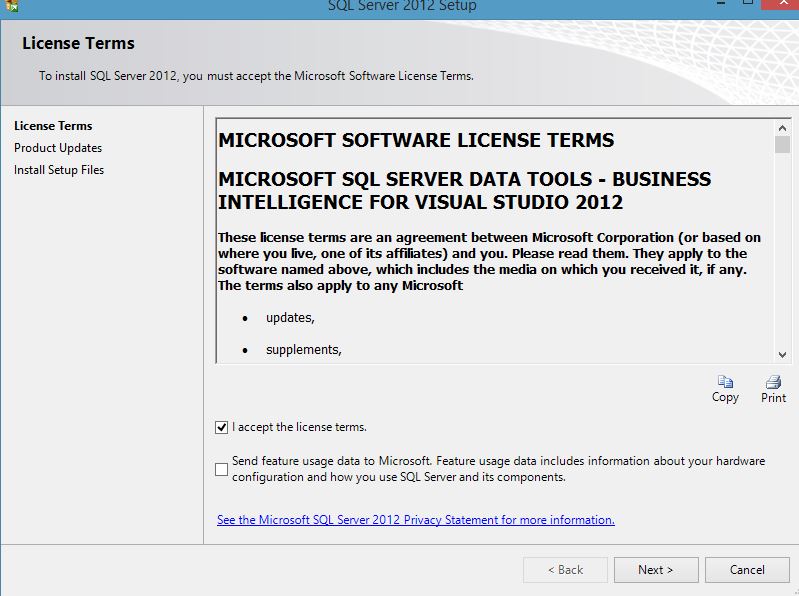

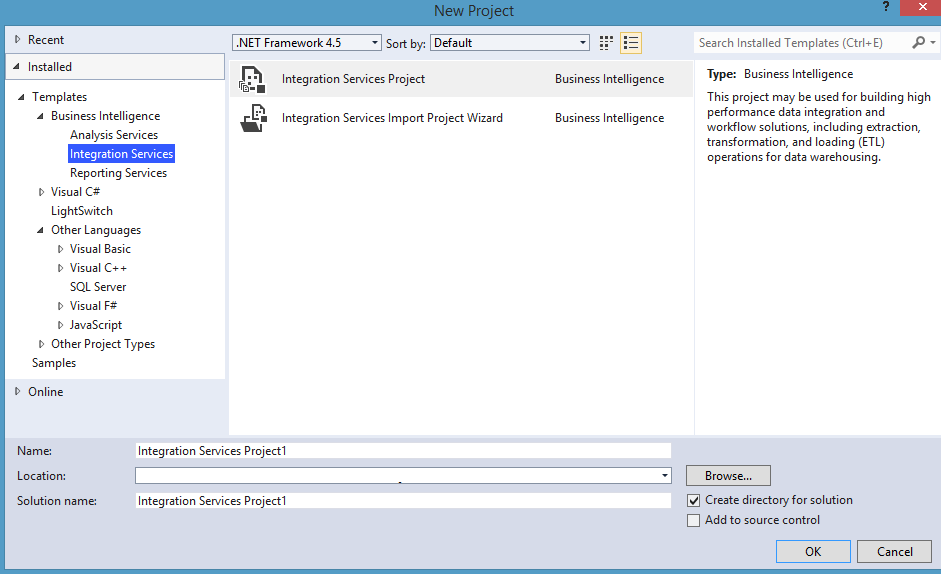

The SSDT installation for Visual Studio 2012 will install Business Intelligence Project Templates in Visual Studio. Therefore, when we create on New Project, the new Business Intelligence Projects will appear on the template list. Select Business Intellience > Integration Services > Integration Services Project:

For a fresh install on BIDS 2008, the Dynamics CRM and Salesforce connector will not appear automatically, to add the Conneciton Manager and the Toolbox components please refer to the help manuals listed above (part 1). Visual Studio 2012 + SSDT installation automatically lists all available pipeline components by scanning the system.

Setup Connection Managers

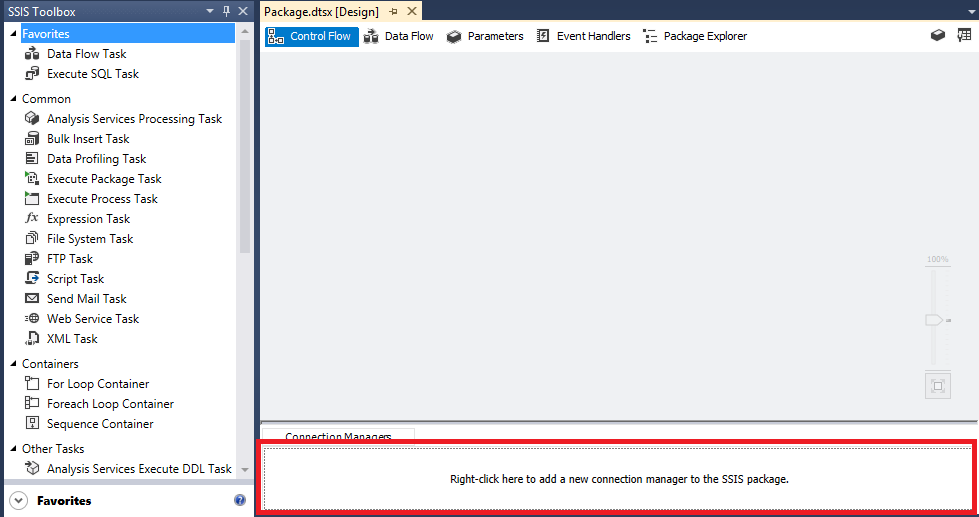

First of all, we need to create connections to both Salesforce (Source) and Dynamics CRM (Target). By Right-Click the Connection Managers box > New Connection:

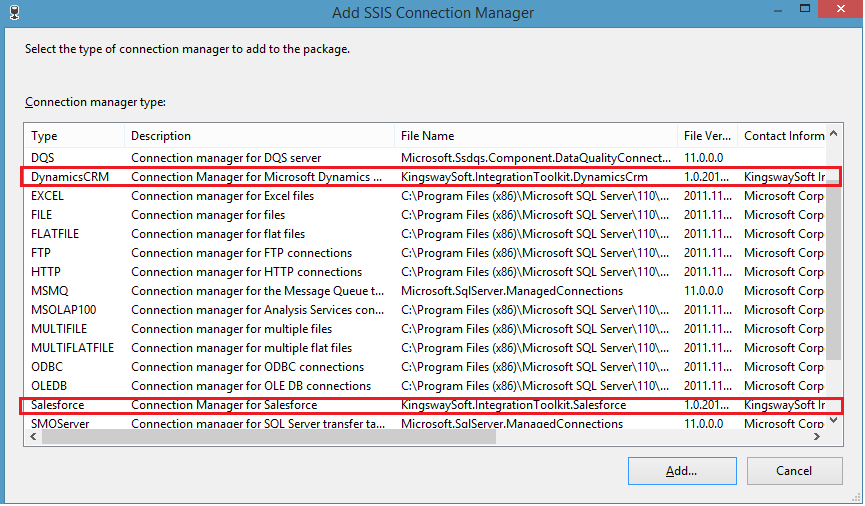

Dynamics CRM and Salesforce connection will be listed amongst the connection list:

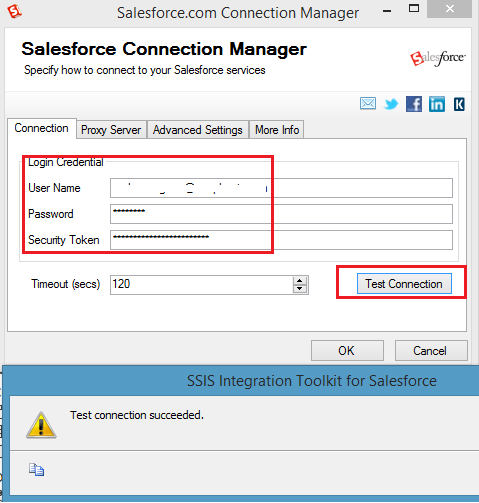

  • Create Salesforce Connection Manager:

The connection manager will open up the connection window that consist of Username, Password and Security Token to Salesforce org. To test whether connection has been successfully configured, click on “Test Connection” button. Then click OK to create the Salesforce Connection Manager.

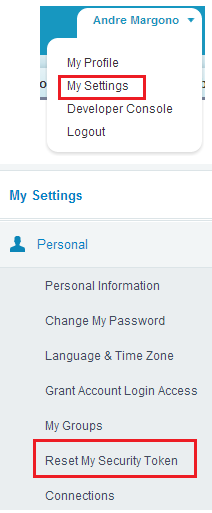

Note: Salesforce connection is highly secured and they implemented Security Token for any API connections that came from outside trusted IP ranges. To reset the security token (in case not provided initially):

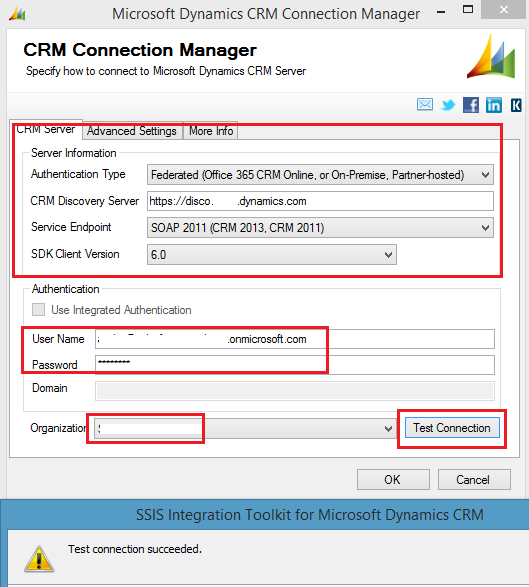

  • Create Dynamics CRM Connection Manager:

The conncetion manager will open up the connection window that consist of Authentication Type, Discovery Service URL (please note the discovery service only need the first part of the URL. Without the following “XRMServices/2011/Discovery.svc”), Service Endpoint, SDK Client Version, Username, Password and Organisation Name. To test whether connection has been successfully configured, click on “Test Connection” button. Then click OK to create the Dynamics CRM Connection Manager.

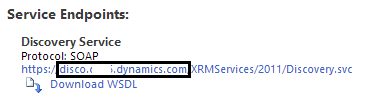

Note: (As usual) to get the Dynamics CRM web services URLs, navigate to: Settings > Customizations > Developer Resources

Build SSIS Control Flow & Data Flow

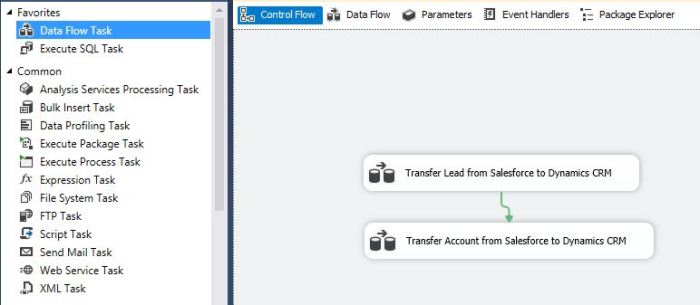

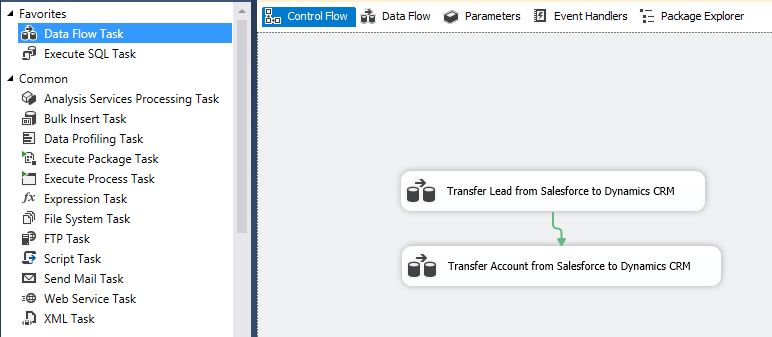

To start building the SSIS package, it starts with the Control Flow and Data Flow. For this example I’ll transfer Lead and Account object from Salesforce to be mapped to Lead and Account Entity in Dynamics CRM. To achieve that: drag 2 Data Flow Task components into the Control Flow and named it with meaningful name, example:

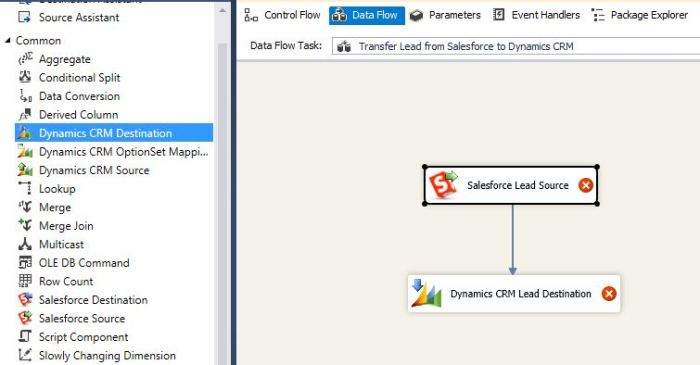

Then drill down to the underlying data flow task by double click the task in Control Flow. Drag Salesforce Source and Dynamics CRM Destination component and link them:

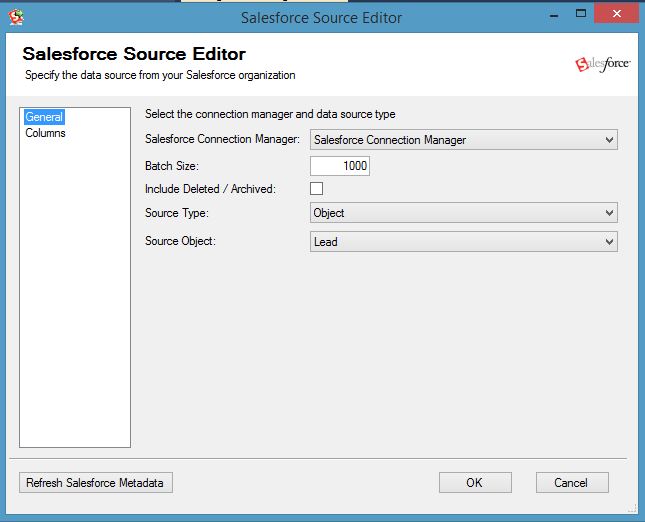

Double Click Salesforce Source to configure the Lead data source. And click on “Columns” to select the required columns as part of the data source. Then click OK:

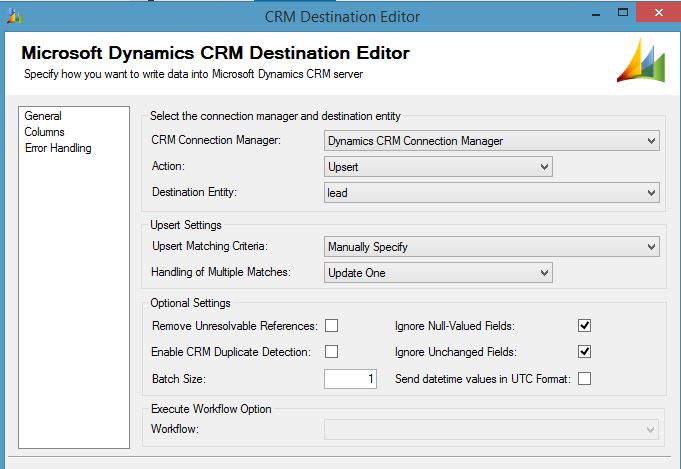

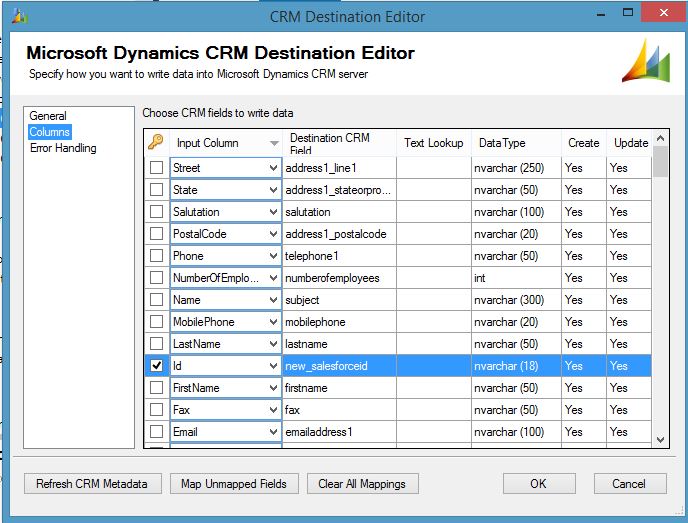

Double click Dynamics CRM Destination to configure the destination and field mappings from Salesforce:

Note: I created a custom text field with 18 character to store the Salesforce id as reference (FYI: Salesforce ID is generated in either 15 or 18 length format, not GUID).

Do the same with the account and run the project:

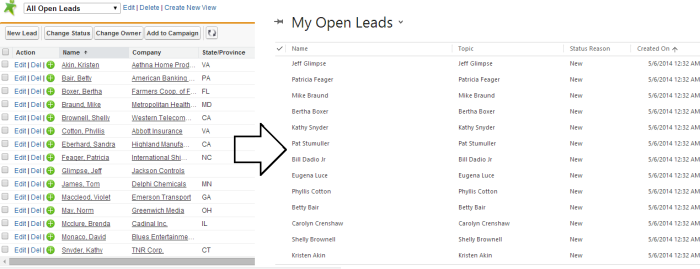

Confirm that the data are transferred from Salesforce to Dynamics CRM:

Bonus Part (Part 3): Deployment Preparation and Package Configuration

Configuration

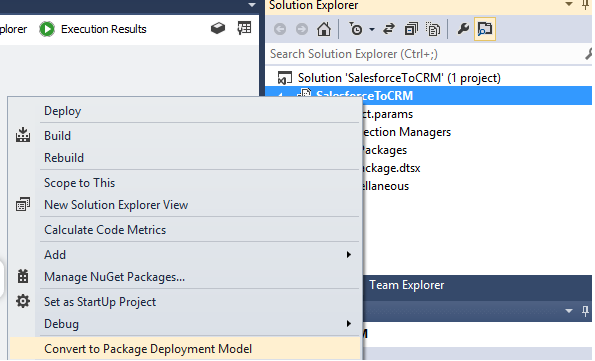

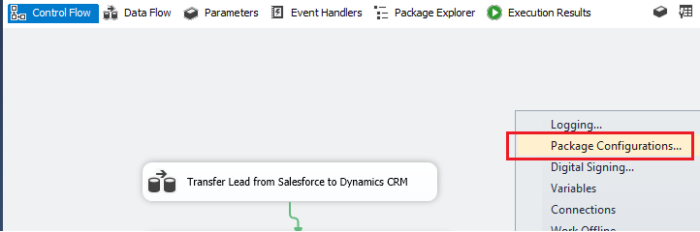

In Visual Studio 2012 + SSDT, we will not find “Package Configuration Wizard” in SSIS when we right click in Control Flow (this is the way to prepare the configurations in BIDS 2008) as the 2012 version introduced the new model for configuration and deployment called the Project deployment model. As part of that change, the old way of doing configuration (environment, xml, parent package, registry and table) is not an option. In the project deployment model, you get parameters and environments. Therefore to create the configuration in the “classic” way, right click on the solution and click on “Convert to Package Deployment Model”:

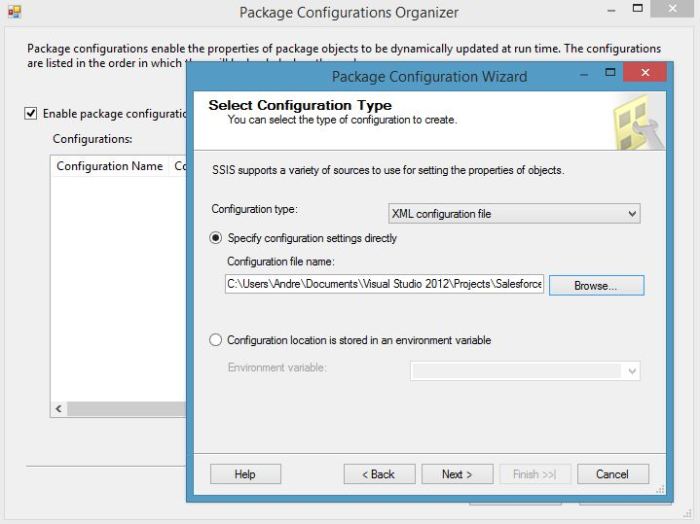

Now the package configurations option is back:

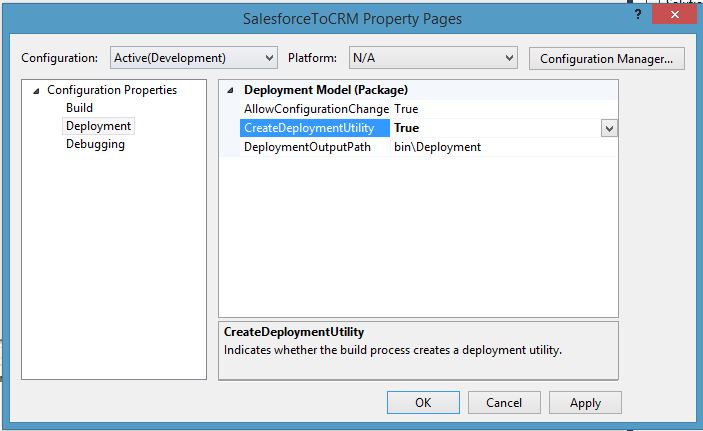

Since we have converted the deployment mode, the deployment .manifest file can be generated through the solution properties and setting the “Create Deployment Utility” to True:

“

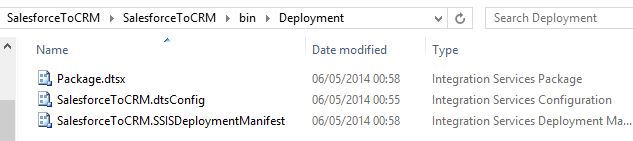

And as the project being built; The deployment files are generated:

Set Filter Attributes – Update Plugin – Dynamics CRM 2013 Upgrade Gotcha

Andre MargonoUncategorized, , , ,

Recently I upgraded one of my virtual machine with Dynamics CRM 2011 to Dynamics CRM 2013. That instance contains my old solutions from previous learning and testing. One of the solution contains several plugins to be triggered on Update request.

With the new auto-save feature in Dynamics CRM 2013, any modification to the form will be automatically saved every 30 seconds or when the user navigated away from the from (click other records or navigate to different page).

There was an unexpected performance issue every a couple seconds (30 seconds to be exact) when I was working with the new CRM 2013 form. After I traced the source of the problem, it was coming from the plugin that triggered every 30 seconds by the auto-save. The new auto-save functionality will trigger the plugin because I was not filtered the plugin on the required fields (attributes). This problem never happened on CRM 2011 as the update request will only be triggered through “Save” button with manual user interaction.

I think it is a best practice to filter the update plugin to only be triggered on the related attributes, to achieve that:

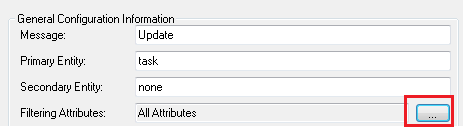

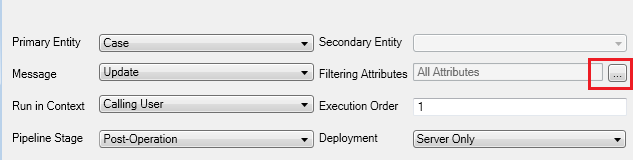

Method 1: through Plugin Registration Tool, on the step registered:

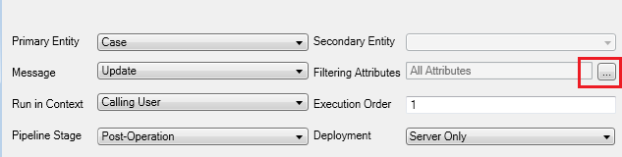

Method 2: through Developer Toolkit in Visual Studio, on the step registered:



This would be a lesson learn in future to do the due-diligence in selecting the correct filter attributes for the plugin.



CRM System Admin & Customiser – Working with Dynamics CRM on iPad

Andre MargonoUncategorized, , , , ,

Recently I stumbled across a question in Dynamics CRM Forum regarding “How to see CRM Settings on a tablet browser”

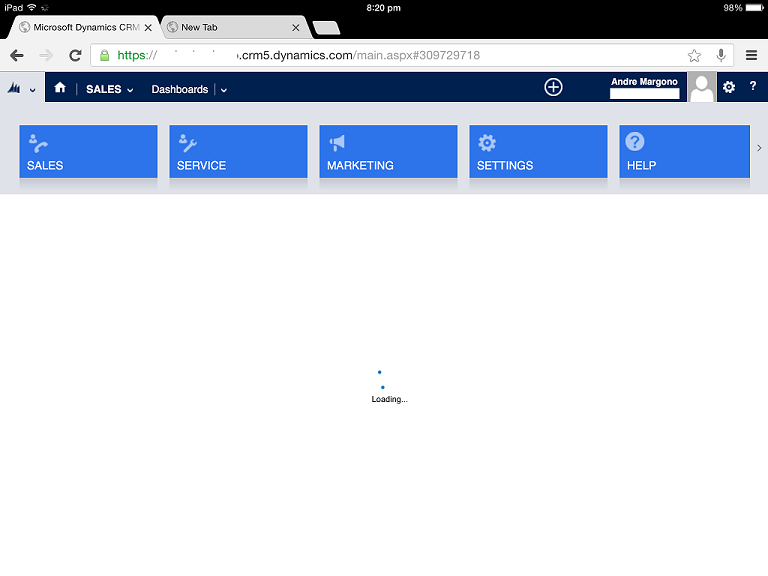

Out of my curiousity, I tried something on my iPad. The steps that I used to achieve this is using Google Chrome on iPad (never bother to check it on Safari though, as I never use that):

1. Open a new Tab, navigate to Dynamics CRM instance.

2. On Google Chrome option (the three lines at the right hand side of url bar), select “Request Desktop Site”

3. It will redirect to https://<crmserverinstance>/m/default.aspx change it to https://<crmserverinstance&gt;/main.aspx

4. Voila, the Settings button is there and works! It’s quite slow though.

Don’t Try This At Home – Adding CRMAppPool User as Dynamics CRM User

Andre MargonoUncategorized, ,

No matter how lazy we are to add new user, especially during “Proof of Concept” or Testing period.

Do not add CRMAppPool User as Dynamics CRM SystemUser. This will breaks the system, moreover in multi-tenant environment – Considering the amount of time required in repairing might be bad in Multi-Tenancy environment in regards to the SLA, all of your CRM Services will break and show the following error:

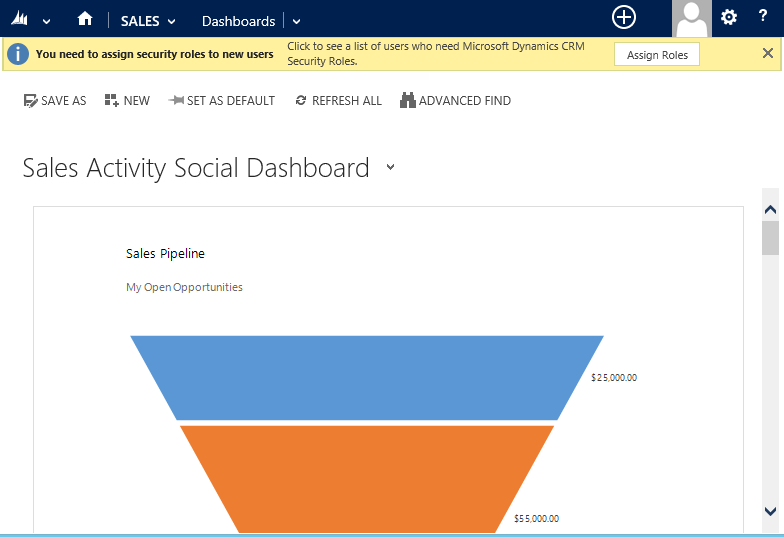

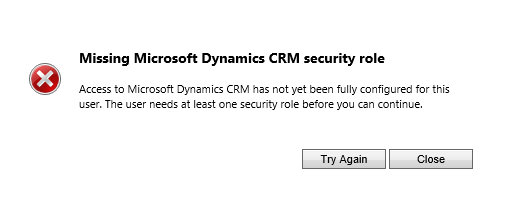

“Missing Dynamics CRM Security Role” – Access to Microsoft Dynamics CRM has not been fully configured for this user. The user needs at least one security role before you can continue.

Microsoft stated: “This behavior is by design. Making the account that is running the CRMAppPool into a Microsoft Dynamics CRM user is not supported.” in this KB article: http://support.microsoft.com/kb/2500917

I did that, so what I need to do?

1. Create new AD User to replace the corrupted one.

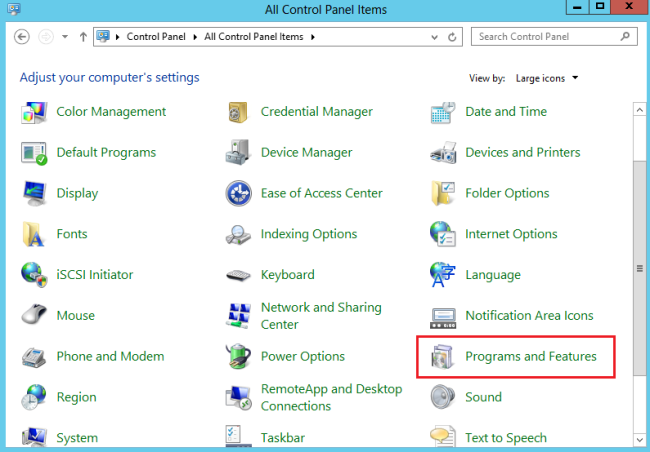

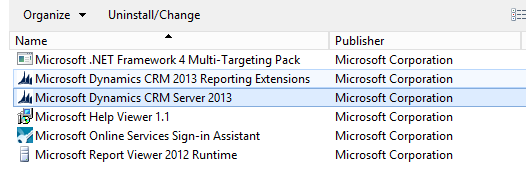

2. Open Control Panel > Programs and Features

3. Open Microsoft Dynamics CRM Server 2013

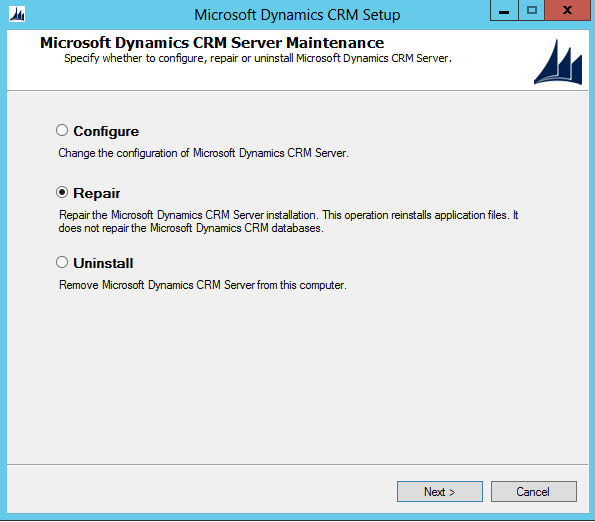

4. Select Repair

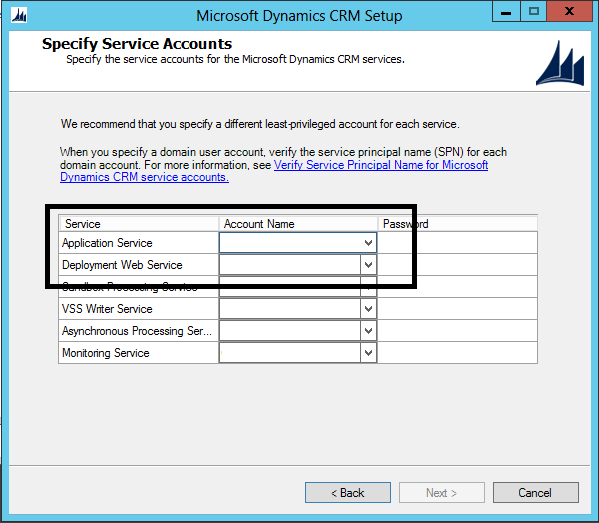

5. Update the following user configuration with the new AD user

6. Continue the whole repair process (“Next” button spam!).

7. Test to access your CRM instances back.

Lesson Learned

Before start working with Dynamics CRM Server, read through the Implementation Guide carefully: http://www.microsoft.com/en-au/download/details.aspx?id=40322 (On CRMIGv6_Planning.docx, Section: Microsoft Dynamics CRM Services and IIS Application Pool Identity Permissions).



Microsoft Dynamics CRM Spring 2014 Release Preview Guide

Andre MargonoCRM 2013, Dynamics CRM 2013, Microsoft CRM, Microsoft Dynamics, ,

Following up the excitement of last night presentation about the key new features of Dynamics CRM 2013 in Q2 2014 release in Melbourne Dynamics CRM User Group by Mark Smith (@nzCRMguy). Microsoft also released the release preview guide.

This Q2 2014 release is highlighting lots of really amazing new features:

  • Microsoft Dynamics Marketing – major enhancement for marketing: Drag and drop visual Campaign Designer, Lead lifecycle management, Marketing Personalised Homepage, Scalable Email Marketing, Power BI for Marketing, Improved Sales & Marketing Connector (This Dynamics Marketing enhancement requires an extra Office 365 Procurement).
  • Updates on Sales Automation – Insights (puts real-time company and contact information from 30,000 sources into Microsoft
    Dynamics CRM), CRM Tablet App Enhancements
  • Customer Service – USD (Unified Service Desk – not US Dollar), Enterprise Case Management (SLA & entitlements, dynamic routing, KPI, case merge, parent child case, automated case creation, Define Status Reasons, Social Care, Service Management), CRM Tablet app –  Case Management.
  • Parature – Multi-Channel Care: portal, facebook portal, mobile app, real-time chat, Knowledge Management
  • Social Listening – Listen & Analyze, Monitor & Respond, Social Insights in Microsoft Dynamics CRM
  • Sandbox Environments (2 types of sandboxes are available: Minimal Copy & Full Copy) with the abilities: reset Sandbox to Factory Settings, Sandbox snapshot. On top of the sandbox environment, Admin also has the access to the New CRM Online Admin Center.

Aside from the new front-facing features there are also enhancement on the platform capabilities that enabling organizations to build, test and configure CRM deployments of all sizes.

Tooling:

  • CRM Package Deployment Tool
  • CRM Configuration Migration Tool
  • Updated Plugin Registration Tool
  • Visual Studio Toolkit enhancements
  • More PowerShell Support
  • New Windows Client API ( Microsoft.Xrm.Tooling.xxxx )

Extensibility:

  • OAuth discovery specification to support ISV/office clients
  • GROUP AND/OR for workflows

Scale: Scaling Improvements in Async processing to handle very large workloads.

And again adding more compatible environments:

  • Windows 8.1
  • Internet Explorer 11
  • iOS7 Safari on iPad (web application)
  • iPad Air using Safari (web application)
  • Windows Server 2012 R2 (CRM server)
  • iPad Air using CRM for Tablets

Full details can be found on: http://go.microsoft.com/fwlink/p/?LinkID=395005

Once again, it is definitely an exciting journey for Dynamics CRM, Dynamics CRM is moving really fast and looking forward for the landing of this massive release.





Awarded as Dynamics CRM MVP – The best April Fool Day Pranks ever!

Andre MargonoCRM 2011, CRM 2013, Dynamics CRM 2013, , ,

First of all, it is such an honor to receive the MVP award from Microsoft this year. It’s all by grace, as there are many people who are more experienced than me in Dynamics CRM.

Yesterday morning when I woke up, I received this big email from Microsoft:

I still could not believe it, as the previous day was April Fool Day where some of my friends teased and set up some pranks on me. Including Google, where they put Pokemon Challenge on Google maps.

I still could not believe it until I click the links in the email, enter the MVP detail and bam! It’s real! I didn’t expect it, even though there was someone from Microsoft asked some contact information a couple weeks before.

So, within this post I would really express my gratitude to God, as it is completely a MIRACLE for me, Microsoft, for this amazing award, Mark Smith (@nzCRMguy) and CP (Microsoft) for allowing me to participate as Melbourne Dynamics CRM User Group Committee, Brett Yorgey, Brent Howard, Felix Hariyadi and JayThom team for introducing me to Dynamics CRM, Sarah Ashton and CRM Team in Oakton who supports me until this day, and of course, my beloved wife that supports me all the time 🙂

I hope my future experience and sharing could continue to contribute to the Dynamics CRM users.

My new MVP profile: https://mvp.microsoft.com/en-us/mvp/Andre%20Margono-5000785

Understanding Dynamics CRM Solution Concept

Andre MargonoUncategorized, , ,

Quite some time ago, I encountered and amazed with some professionals that claimed to have been working with Dynamics CRM for years but still confused with the concept of solution, thus causing issues on the CRM instance that left behind and made us to fix the problems.

The previous developers left the customisations in the base solution in the dev environment and the production environment left with partially correct metadata. And also the system admin that uninstall managed solution without considering data loss, fortunately we made database backup before the uninstall.

In conclusion, basic knowledge of Dynamics CRM solution is a must for system customiser, developer and even system admin.

Below post from CRM community blog by Ben Hosking is really informational and gives the reader the essential knowledge on how solution works:

https://community.dynamics.com/crm/b/crmbusiness/archive/2014/03/31/crm-2013-understanding-solutions-and-how-they-work.aspx

Microsoft Dynamics Demo Builder

Andre MargonoUncategorized, ,

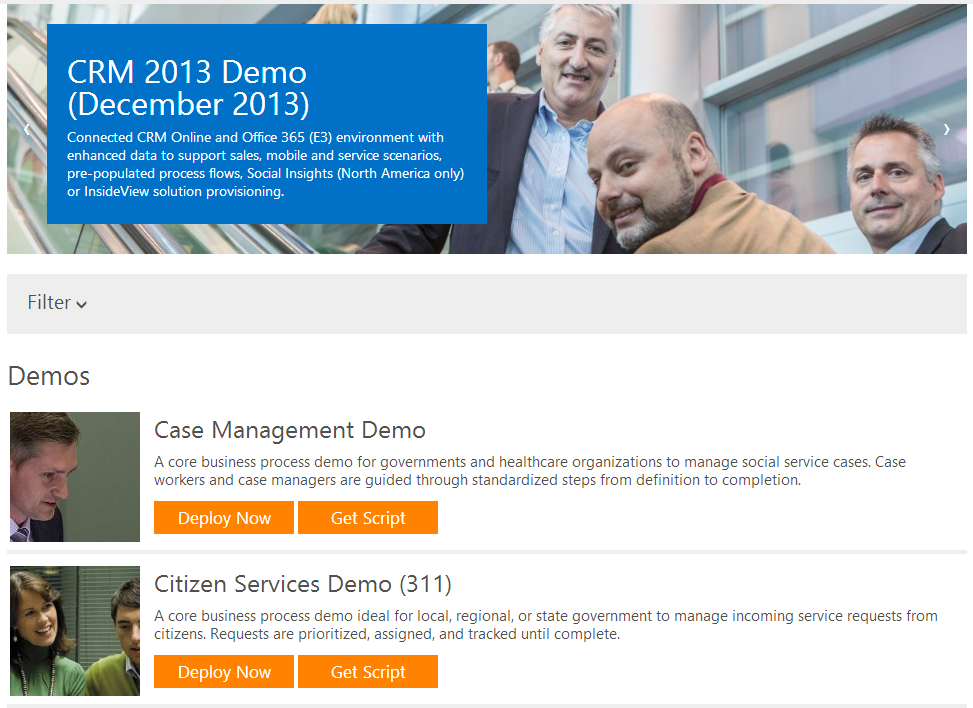

Today I found this Dynamics Demo website that will help us to quickly create demo org to present to customers. Some of the demo also contains great template such as: Grants Management, Case Management, Financial Service, CRM + SharePoint.

https://www.microsoftdynamicsdemos.com/

Dynamics CRM Compatibility with Windows 8.1 & IE 11

Andre MargonoUncategorized, , , , , ,

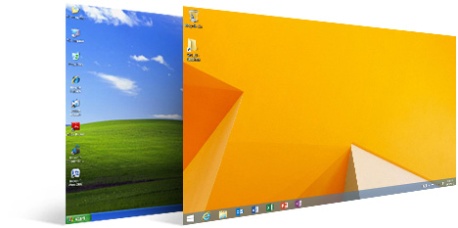

Windows XP support is going to be over on 8th of April 2014. To learn more about upgrade options for Windows XP: http://www.microsoft.com/windows/en-au/xp/upgrade-options.aspx





Everything seems good and cool. Windows 8.1 is lovely, Windows button is there, the UI is sleek and fluid, lots of Apps available in the store.
Until we come to our lovely Dynamics CRM 2011, IE 11 makes it not working properly anymore!

Why??!!
This KB article mentioned about the Microsoft Dynamics CRM support for IE 11:
http://support.microsoft.com/kb/2935509

There are some options available:

1. Upgrade Your Microsoft Dynamics CRM to 2013 (Update Rollup 2 solves this compatibility)

KB Article: http://support.microsoft.com/kb/2919956
Download Link: http://microsoft.com/en-us/download/details.aspx?id=42272
Some good consideration when implementing UR by Donna Edwards: http://edwardsdna.com/2014/03/24/update-rollups-should-i-or-should-i-not-that-is-the-question/

2. Temporarily use Google Chrome and Mozilla Firefox until you are ready to Upgrade to Microsoft Dynamics CRM 2013 or UR on Dynamics CRM 2011 that supports IE 11.

Currently, Microsoft plans to add Internet Explorer 11 in compatibility mode as a supported web browser in the third quarter of calendar year 2014 for Microsoft Dynamics CRM 2011.

Looking forward to see more organisations to upgrade to Microsoft Dynamics CRM 2013 and taste the best of the upgrade!





Dynamics CRM 2013 [Beta] Exciting Part! Process Form & Business Rules Everywhere!

Andre MargonoUncategorized, , , , , ,

I’m lucky enough to get a hands-on with the new Dynamics CRM 2013 Beta from my current company as part of partner readiness.

The features that I really love from this new update are: Process Form & Business Rules!

What is Process Form? This update was released on CRM Online version in Dec 2012, around the same time as the release of UR 12 (Exciting multi-browsers support). This feature is helping sales process to keep track with each stage of a form. And now it’s available everywhere on every entity (as far as I can see in this beta release)!

Next is Business Rule. What is it? This is an amazing feature to implement business logic on certain entity. We could build our validation rule on the form, field update, hide/show part within form, make field editable based on certain values and many more awesome functionality and it is bound to solution! From developer point of view, this will reduce the time to do form scripting (reduce testing time when there is bug/wrong logic in the js)

Would this replace plug-in or workflow functionality? To certain extent it may.

I’ll keep updating this post with screenshots and more detailed features.
